Thruster Disc Brake
Johnson Thruster Disc Brakes are spring-set, 3-phase thruster-released disc brakes, built in all-metric in-line and compact configurations. Fabricated steel mechanism with non-ferrous bushed pivots, ground stainless steel pins, and high-temperature non-asbestos friction linings (sintered metallic linings optional).
Thrusters: Available with Elhy EB (preferred), Eldro ED, or Johnson EJ thrusters, IP56 enclosed.
Options: Self-adjusting mechanism, mechanical release lever, limit switches to monitor release/set/wear, and electronic modulated torque by remote pedal.
Applications: Mechanical handling equipment, cranes, winches, stacker reclaimers, and conveyors.

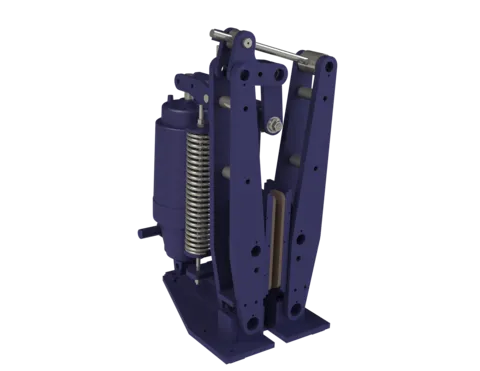

CL Series
Min Disc Diameter: 25 in / 630 mm
Braking Torque Range: 2,890–14,900 lb-ft / 3,900–20,200 Nm
Clamping Force: 8,766–21,390 lb / 38,990–95,160 N (by thruster size)
Min Disc Diameter: 25 in / 630 mm
Braking Torque (max static): 2,890–14,900 lb-ft / 3,900–20,200 Nm (disc 25–47 in / 630–1,200 mm)
Brake Force: 3,510–8,550 lb / 15.6–38.1 kN
Shaft Reaction: 3,310–7,830 lb / 1,500–3,550 kg
Weight: 562–606 lb / 255–275 kg
Thruster Rating: Elhy EB150 / EB250 / EB320, IP56
Thruster Power: 0.54–0.80 HP / 0.40–0.60 kW
Disc Thickness: 1.18 in / 30 mm
Full dimensional drawings available on request.

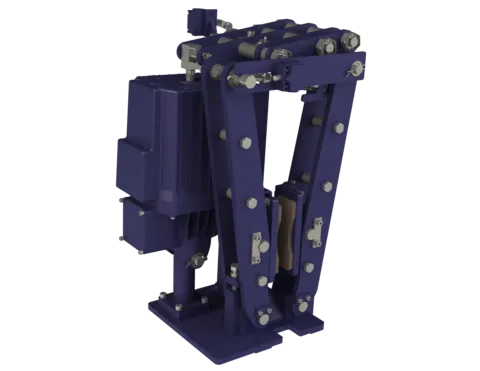

CL Series — CL11
Min Disc Diameter: 10 in / 250 mm
Braking Torque Range: 155–480 lb-ft / 205–640 Nm
Clamping Force: 1,180–1,600 lb / 5,250–7,125 N (by thruster size)
Min Disc Diameter: 10 in / 250 mm
Braking Torque (max static): 155–480 lb-ft / 205–640 Nm (disc 10–20 in / 250–500 mm)
Shaft Reaction: 475–650 lb / 216–294 kg
Weight: 93.7–94.1 lb / 42.5–42.7 kg
Thruster Rating: Elhy EB220 / EB300, IP56
Thruster Power: 0.20–0.27 HP / 0.15–0.20 kW
Disc Thickness: 0.79 in / 20 mm
Full dimensional drawings available on request.

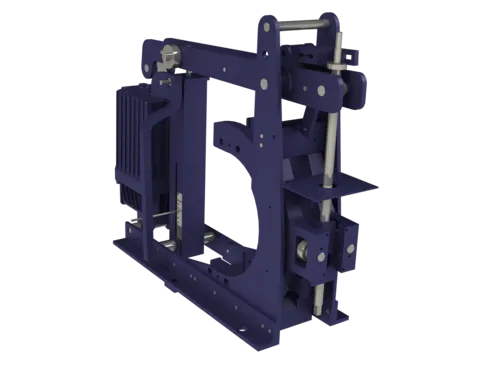

TBC Series — Compact
TBC brakes are drop-in disc brake replacements for DIN Metric and AISE Imperial drum brakes, matching the same mounting footprint and drum centre height as the equivalent drum brake — for example, a TBC part number referencing a 16” drum brake size will share that unit’s footprint even though the actual disc diameter differs.
Min Disc Diameter: 17 in / 432 mm
Braking Torque Range: 390–950 lb-ft (by thruster)
Min Disc Diameter: 17 in / 432 mm
Braking Torque (max): 390 / 640 / 950 lb-ft for EJ030 / EJ050 / EJ080
Weight: 260 / 275 / 295 lb (118 / 125 / 134 kg)
Thruster Rating: Johnson EJ030 / EJ050 / EJ080, IP56
Thruster Power: 195 / 210 / 320 W
Pad Area: 45 in²
Full dimensional drawings available on request.
