Rail Clamps
Applications: Cranes, Winches, Storm Brakes, Ports, Steel Mills, Rail & Metro
Often referred to as Storm Brakes, Johnson Rail Clamps ensure safety in the event of high winds or storms by clamping directly onto the rail head. A variety of holding capacities are available, from 1,000 to 150,000 lb (4.4 kN to 667 kN), in truck-end, sill-beam, and flange mounted designs.
Control systems are offered in either hydraulic or electric versions, with power units available separate or integrated into the rail clamp enclosure. It is typical to have a rail clamp control system on each side of the crane to prevent long hydraulic hose runs.
Features and options: Custom mountings, coatings and materials, match-drilled mating flange, dust-tight or custom enclosures, and hand pumps for manual release.
SFC Series
Holding Force: 12,500 lbf / 56 kN
Mounting Bolt Ø: 0.625 in / 16 mm
Approx. Weight: 260 lb / 118 kg
Actuator Pressure (Release): 1010 psi / 7.0 MPa
Actuator Pressure (Hold-off): 930 psi / 6.4 MPa
Max Volume: 8.8 in³ / 145 cm³
Holding Force: 25,000 lbf / 111 kN
Mounting Bolt Ø: 0.75 in / 20 mm
Approx. Weight: 340 lb / 155 kg
Actuator Pressure (Release): 1240 psi / 8.5 MPa
Actuator Pressure (Hold-off): 1140 psi / 7.9 MPa
Max Volume: 16.2 in³ / 266 cm³
Holding Force: 50,000 lbf / 222 kN
Mounting Bolt Ø: 1 in / 27 mm
Approx. Weight: 560 lb / 255 kg
Actuator Pressure (Release): 1270 psi / 8.7 MPa
Actuator Pressure (Hold-off): 1160 psi / 8.0 MPa
Max Volume: 31.2 in³ / 511 cm³
Holding Force: 75,000 lbf / 334 kN
Mounting Bolt Ø: 1.125 in / 30 mm
Approx. Weight: 870 lb / 395 kg
Actuator Pressure (Release): 1150 psi / 7.9 MPa
Actuator Pressure (Hold-off): 1050 psi / 7.2 MPa
Max Volume: 49.8 in³ / 815.3 cm³
Holding Force: 100,000 lbf / 445 kN
Mounting Bolt Ø: 1.25 in / 33 mm
Approx. Weight: 1290 lb / 586 kg
Actuator Pressure (Release): 1150 psi / 7.9 MPa
Actuator Pressure (Hold-off): 1050 psi / 7.2 MPa
Max Volume: 66.4 in³ / 1088 cm³
Holding Force: 150,000 lbf / 667 kN
Mounting Bolt Ø: 1.5 in / 39 mm
Approx. Weight: 1800 lb / 818 kg
Actuator Pressure (Release): 1150 psi / 7.9 MPa
Actuator Pressure (Hold-off): 1050 psi / 7.2 MPa
Max Volume: 85.0 in³ / 1390 cm³
SBH Series
Holding Force: 12,500 lbf / 56 kN
Mounting Bolt Ø: 0.625 in / 16 mm
Approx. Weight: 720 lb / 328 kg
Actuator Pressure (Release): 1010 psi / 7.0 MPa
Actuator Pressure (Hold-off): 930 psi / 6.4 MPa
Max Volume: 8.8 in³ / 145 cm³
Holding Force: 25,000 lbf / 111 kN
Mounting Bolt Ø: 0.75 in / 20 mm
Approx. Weight: 860 lb / 391 kg
Actuator Pressure (Release): 1240 psi / 8.5 MPa
Actuator Pressure (Hold-off): 1140 psi / 7.9 MPa
Max Volume: 16.2 in³ / 266 cm³
Holding Force: 50,000 lbf / 222 kN
Mounting Bolt Ø: 1 in / 27 mm
Approx. Weight: 1200 lb / 545 kg
Actuator Pressure (Release): 1270 psi / 8.7 MPa
Actuator Pressure (Hold-off): 1160 psi / 8.0 MPa
Max Volume: 31.2 in³ / 511 cm³
Holding Force: 75,000 lbf / 334 kN
Mounting Bolt Ø: 1.125 in / 30 mm
Approx. Weight: 1850 lb / 841 kg
Actuator Pressure (Release): 1150 psi / 7.9 MPa
Actuator Pressure (Hold-off): 1050 psi / 7.2 MPa
Max Volume: 49.8 in³ / 815.3 cm³
Holding Force: 100,000 lbf / 445 kN
Mounting Bolt Ø: 1.25 in / 33 mm
Approx. Weight: 2650 lb / 1204 kg
Actuator Pressure (Release): 1150 psi / 7.9 MPa
Actuator Pressure (Hold-off): 1050 psi / 7.2 MPa
Max Volume: 66.4 in³ / 1088 cm³
Holding Force: 150,000 lbf / 667 kN
Mounting Bolt Ø: 1.5 in / 39 mm
Approx. Weight: 3450 lb / 1568 kg
Actuator Pressure (Release): 1150 psi / 7.9 MPa
Actuator Pressure (Hold-off): 1050 psi / 7.2 MPa
Max Volume: 85.0 in³ / 1390 cm³

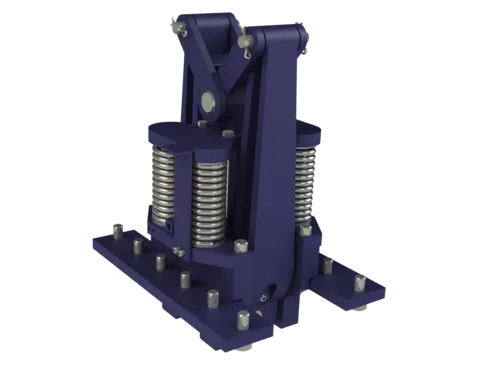

SBC Series
Holding Force: 12,500 lbf / 56 kN
Mounting Bolt Ø: 0.625 in / 16 mm
Approx. Weight: 440 lb / 200 kg
Actuator Pressure (Release): 1010 psi / 7.0 MPa
Actuator Pressure (Hold-off): 930 psi / 6.4 MPa
Max Volume: 8.8 in³ / 145 cm³
Holding Force: 25,000 lbf / 111 kN
Mounting Bolt Ø: 0.75 in / 20 mm
Approx. Weight: 580 lb / 264 kg
Actuator Pressure (Release): 1240 psi / 8.5 MPa
Actuator Pressure (Hold-off): 1140 psi / 7.9 MPa
Max Volume: 16.2 in³ / 266 cm³
Holding Force: 50,000 lbf / 222 kN
Mounting Bolt Ø: 1 in / 27 mm
Approx. Weight: 960 lb / 436 kg
Actuator Pressure (Release): 1270 psi / 8.7 MPa
Actuator Pressure (Hold-off): 1160 psi / 8.0 MPa
Max Volume: 31.2 in³ / 511 cm³
Holding Force: 75,000 lbf / 334 kN
Mounting Bolt Ø: 1.125 in / 30 mm
Approx. Weight: 1480 lb / 673 kg
Actuator Pressure (Release): 1150 psi / 7.9 MPa
Actuator Pressure (Hold-off): 1050 psi / 7.2 MPa
Max Volume: 49.8 in³ / 815.3 cm³
Holding Force: 100,000 lbf / 445 kN
Mounting Bolt Ø: 1.25 in / 33 mm
Approx. Weight: 2250 lb / 1023 kg
Actuator Pressure (Release): 1150 psi / 7.9 MPa
Actuator Pressure (Hold-off): 1050 psi / 7.2 MPa
Max Volume: 66.4 in³ / 1088 cm³
Holding Force: 115,000 lbf / 511 kN
Mounting Bolt Ø: 1.25 in / 33 mm
Approx. Weight: 2250 lb / 1023 kg
Actuator Pressure (Release): 1270 psi / 8.7 MPa
Actuator Pressure (Hold-off): 1160 psi / 8.0 MPa
Max Volume: 66.4 in³ / 1088 cm³
Holding Force: 150,000 lbf / 667 kN
Mounting Bolt Ø: 1.5 in / 39 mm
Approx. Weight: 3600 lb / 1636 kg
Actuator Pressure (Release): 1150 psi / 7.9 MPa
Actuator Pressure (Hold-off): 1050 psi / 7.2 MPa
Max Volume: 85.0 in³ / 1390 cm³
STC Series
Holding Force: 12,500 lbf / 56 kN
Mounting Bolt Ø: 0.625 in / 16 mm
Approx. Weight: 390 lb / 177 kg
Actuator Pressure (Release): 1010 psi / 7.0 MPa
Actuator Pressure (Hold-off): 930 psi / 6.4 MPa
Max Volume: 8.8 in³ / 145 cm³
Holding Force: 25,000 lbf / 111 kN
Mounting Bolt Ø: 0.75 in / 20 mm
Approx. Weight: 440 lb / 200 kg
Actuator Pressure (Release): 1240 psi / 8.5 MPa
Actuator Pressure (Hold-off): 1140 psi / 7.9 MPa
Max Volume: 16.2 in³ / 266 cm³
Holding Force: 50,000 lbf / 222 kN
Mounting Bolt Ø: 1 in / 27 mm
Approx. Weight: 850 lb / 386 kg
Actuator Pressure (Release): 1270 psi / 8.7 MPa
Actuator Pressure (Hold-off): 1160 psi / 8.0 MPa
Max Volume: 31.2 in³ / 511 cm³
Holding Force: 75,000 lbf / 334 kN
Mounting Bolt Ø: 1.125 in / 30 mm
Approx. Weight: 1330 lb / 605 kg
Actuator Pressure (Release): 1150 psi / 7.9 MPa
Actuator Pressure (Hold-off): 1050 psi / 7.2 MPa
Max Volume: 49.8 in³ / 815.3 cm³
Holding Force: 100,000 lbf / 445 kN
Mounting Bolt Ø: 1.25 in / 33 mm
Approx. Weight: 1980 lb / 900 kg
Actuator Pressure (Release): 1150 psi / 7.9 MPa
Actuator Pressure (Hold-off): 1050 psi / 7.2 MPa
Max Volume: 66.4 in³ / 1088 cm³
Holding Force: 150,000 lbf / 667 kN
Mounting Bolt Ø: 1.5 in / 39 mm
Approx. Weight: 2650 lb / 1200 kg
Actuator Pressure (Release): 1150 psi / 7.9 MPa
Actuator Pressure (Hold-off): 1050 psi / 7.2 MPa
Max Volume: 85.0 in³ / 1390 cm³
VTH Series
Holding Force: 12,500 lbf / 56 kN
Mounting Bolt Ø: 0.625 in / 16 mm
Approx. Weight: 710 lb / 322 kg
Actuator Pressure (Release): 1010 psi / 7.0 MPa
Actuator Pressure (Hold-off): 930 psi / 6.4 MPa
Max Volume: 8.8 in³ / 145 cm³
Holding Force: 25,000 lbf / 111 kN
Mounting Bolt Ø: 0.75 in / 20 mm
Approx. Weight: 850 lb / 385 kg
Actuator Pressure (Release): 1200 psi / 8.2 MPa
Actuator Pressure (Hold-off): 1100 psi / 7.6 MPa
Max Volume: 16.2 in³ / 266 cm³
Holding Force: 50,000 lbf / 222 kN
Mounting Bolt Ø: 1 in / 27 mm
Approx. Weight: 1428 lb / 648 kg
Actuator Pressure (Release): 1200 psi / 8.2 MPa
Actuator Pressure (Hold-off): 1100 psi / 7.6 MPa
Max Volume: 31.2 in³ / 511 cm³
Holding Force: 75,000 lbf / 334 kN
Mounting Bolt Ø: 1.125 in / 30 mm
Approx. Weight: 1980 lb / 898 kg
Actuator Pressure (Release): 1200 psi / 8.2 MPa
Actuator Pressure (Hold-off): 1100 psi / 7.6 MPa
Max Volume: 49.8 in³ / 815.3 cm³
Holding Force: 100,000 lbf / 445 kN
Mounting Bolt Ø: 1.25 in / 33 mm
Approx. Weight: 2820 lb / 1280 kg
Actuator Pressure (Release): 1200 psi / 8.2 MPa
Actuator Pressure (Hold-off): 1100 psi / 7.6 MPa
Max Volume: 66.4 in³ / 1088 cm³
Holding Force: 150,000 lbf / 667 kN
Mounting Bolt Ø: 1.375 in / 36 mm
Approx. Weight: 3780 lb / 1715 kg
Actuator Pressure (Release): 1200 psi / 8.2 MPa
Actuator Pressure (Hold-off): 1100 psi / 7.6 MPa
Max Volume: 85.0 in³ / 1390 cm³
SBHL Series
Holding Force: 12,500 lbf / 56 kN
Mounting Bolt Ø: 0.625 in / 16 mm
Approx. Weight: 590 lb / 269 kg
Actuator Pressure (Release): 1010 psi / 7.0 MPa
Actuator Pressure (Hold-off): 930 psi / 6.4 MPa
Max Volume: 8.8 in³ / 145 cm³
Holding Force: 25,000 lbf / 111 kN
Mounting Bolt Ø: 0.75 in / 20 mm
Approx. Weight: 750 lb / 341 kg
Actuator Pressure (Release): 1240 psi / 8.5 MPa
Actuator Pressure (Hold-off): 1140 psi / 7.9 MPa
Max Volume: 16.2 in³ / 266 cm³
Holding Force: 50,000 lbf / 222 kN
Mounting Bolt Ø: 1 in / 27 mm
Approx. Weight: 1160 lb / 527 kg
Actuator Pressure (Release): 1270 psi / 8.7 MPa
Actuator Pressure (Hold-off): 1160 psi / 8.0 MPa
Max Volume: 31.2 in³ / 511 cm³
Holding Force: 75,000 lbf / 334 kN
Mounting Bolt Ø: 1.125 in / 30 mm
Approx. Weight: 1720 lb / 782 kg
Actuator Pressure (Release): 1150 psi / 7.9 MPa
Actuator Pressure (Hold-off): 1050 psi / 7.2 MPa
Max Volume: 49.8 in³ / 815.3 cm³
Holding Force: 100,000 lbf / 445 kN
Mounting Bolt Ø: 1.25 in / 33 mm
Approx. Weight: 2510 lb / 1141 kg
Actuator Pressure (Release): 1150 psi / 7.9 MPa
Actuator Pressure (Hold-off): 1050 psi / 7.2 MPa
Max Volume: 66.4 in³ / 1088 cm³
Holding Force: 150,000 lbf / 667 kN
Mounting Bolt Ø: 1.5 in / 39 mm
Approx. Weight: 3250 lb / 1478 kg
Actuator Pressure (Release): 1150 psi / 7.9 MPa
Actuator Pressure (Hold-off): 1050 psi / 7.2 MPa
Max Volume: 85.0 in³ / 1390 cm³
VTC Series
Holding Force: 12,500 lbf / 56 kN
Mounting Bolt Ø: 0.625 in / 16 mm
Approx. Weight: 710 lb / 322 kg
Actuator Pressure (Release): 1010 psi / 7.0 MPa
Actuator Pressure (Hold-off): 930 psi / 6.4 MPa
Max Volume: 8.8 in³ / 145 cm³
Holding Force: 25,000 lbf / 111 kN
Mounting Bolt Ø: 0.75 in / 20 mm
Approx. Weight: 850 lb / 385 kg
Actuator Pressure (Release): 1200 psi / 8.2 MPa
Actuator Pressure (Hold-off): 1100 psi / 7.6 MPa
Max Volume: 16.2 in³ / 266 cm³
Holding Force: 50,000 lbf / 222 kN
Mounting Bolt Ø: 1 in / 27 mm
Approx. Weight: 1428 lb / 648 kg
Actuator Pressure (Release): 1200 psi / 8.2 MPa
Actuator Pressure (Hold-off): 1100 psi / 7.6 MPa
Max Volume: 31.2 in³ / 511 cm³
Holding Force: 75,000 lbf / 334 kN
Mounting Bolt Ø: 1.125 in / 30 mm
Approx. Weight: 1980 lb / 898 kg
Actuator Pressure (Release): 1200 psi / 8.2 MPa
Actuator Pressure (Hold-off): 1100 psi / 7.6 MPa
Max Volume: 49.8 in³ / 815.3 cm³
Holding Force: 100,000 lbf / 445 kN
Mounting Bolt Ø: 1.25 in / 33 mm
Approx. Weight: 2820 lb / 1280 kg
Actuator Pressure (Release): 1200 psi / 8.2 MPa
Actuator Pressure (Hold-off): 1100 psi / 7.6 MPa
Max Volume: 66.4 in³ / 1088 cm³
Holding Force: 150,000 lbf / 667 kN
Mounting Bolt Ø: 1.375 in / 36 mm
Approx. Weight: 3780 lb / 1715 kg
Actuator Pressure (Release): 1200 psi / 8.2 MPa
Actuator Pressure (Hold-off): 1100 psi / 7.6 MPa
Max Volume: 85.0 in³ / 1390 cm³

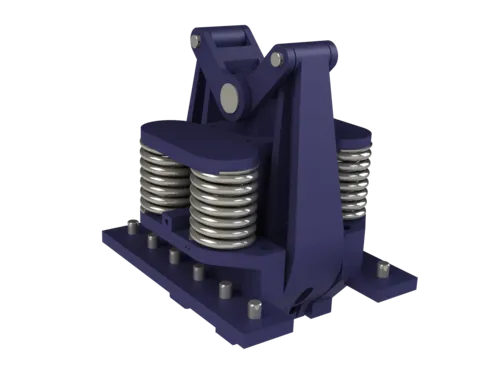

STH Series
Holding Force: 12,500 lbf / 56 kN
Mounting Bolt Ø: 0.625 in / 16 mm
Approx. Weight: 590 lb / 270 kg
Actuator Pressure (Release): 1010 psi / 7.0 MPa
Actuator Pressure (Hold-off): 930 psi / 6.4 MPa
Max Volume: 8.8 in³ / 145 cm³
Holding Force: 25,000 lbf / 111 kN
Mounting Bolt Ø: 0.75 in / 20 mm
Approx. Weight: 710 lb / 322 kg
Actuator Pressure (Release): 1240 psi / 8.5 MPa
Actuator Pressure (Hold-off): 1140 psi / 7.9 MPa
Max Volume: 16.2 in³ / 266 cm³
Holding Force: 50,000 lbf / 222 kN
Mounting Bolt Ø: 1 in / 27 mm
Approx. Weight: 1190 lb / 522 kg
Actuator Pressure (Release): 1270 psi / 8.7 MPa
Actuator Pressure (Hold-off): 1160 psi / 8.0 MPa
Max Volume: 31.2 in³ / 511 cm³
Holding Force: 75,000 lbf / 334 kN
Mounting Bolt Ø: 1.125 in / 30 mm
Approx. Weight: 1650 lb / 750 kg
Actuator Pressure (Release): 1150 psi / 7.9 MPa
Actuator Pressure (Hold-off): 1050 psi / 7.2 MPa
Max Volume: 49.8 in³ / 815.3 cm³
Holding Force: 100,000 lbf / 445 kN
Mounting Bolt Ø: 1.25 in / 33 mm
Approx. Weight: 2350 lb / 1068 kg
Actuator Pressure (Release): 1150 psi / 7.9 MPa
Actuator Pressure (Hold-off): 1050 psi / 7.2 MPa
Max Volume: 66.4 in³ / 1088 cm³
Holding Force: 150,000 lbf / 667 kN
Mounting Bolt Ø: 1.375 in / 36 mm
Approx. Weight: 3150 lb / 1430 kg
Actuator Pressure (Release): 1150 psi / 7.9 MPa
Actuator Pressure (Hold-off): 1050 psi / 7.2 MPa
Max Volume: 85.0 in³ / 1390 cm³
TRT Series — Tripper Rail Clamps
Actuator Strokes: 0.375″ to 1.25″ working range, max 2.25″
Max Shoe Wear: 0.19″ per shoe
Nominal Rating: 2000 lb dynamic (at 0.1 friction coefficient and 1″ actuator stroke)
Hydraulic Pressures: 910 psi release, 865 psi hold-off, 2000 psi maximum
Air Pressures: 99 psi release, 92 psi hold-off, 120 psi maximum
Assembly Lateral Float: ± 0.50″
Approx. Weight: 160 lb
Actuator Strokes: 0.375″ to 1.25″ working range, max 2.25″
Max Shoe Wear: 0.19″ per shoe
Nominal Rating: 2000 lb dynamic (at 0.1 friction coefficient and 1″ actuator stroke)
Hydraulic Pressures: 910 psi release, 865 psi hold-off, 2000 psi maximum
Air Pressures: 99 psi release, 92 psi hold-off, 120 psi maximum
Assembly Lateral Float: ± 0.75″
Approx. Weight: 220 lb
Actuator Strokes: 0.375″ to 1.25″ working range, max 2.25″
Max Shoe Wear: 0.19″ per shoe
Nominal Rating: 2000 lb dynamic (at 0.1 friction coefficient and 1″ actuator stroke)
Hydraulic Pressures: 910 psi release, 865 psi hold-off, 2000 psi maximum
Air Pressures: 99 psi release, 92 psi hold-off, 120 psi maximum
Assembly Lateral Float: ± 0.50″
Approx. Weight: 160 lb
Actuator Strokes: 0.25″ to 1″ working range, max 3″
Max Shoe Wear: 0.19″ per shoe
Nominal Rating: 1650 lb dynamic (at 0.1 friction coefficient and 1″ actuator stroke)
Hydraulic Pressures: 1125 psi release, 1000 psi hold-off, 2000 psi maximum
Air Pressures: 105 psi release, 95 psi hold-off, 120 psi maximum
Assembly Lateral Float: ± 0.75″
Approx. Weight: 190 lb
