Toggle Lever Caliper Brake

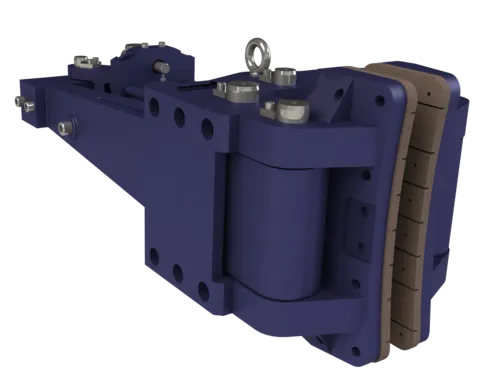

Toggle lever caliper brakes for mechanical handling and industrial braking applications. Select a model below to see its rendering.
Applied Force: 75,000 lb / 334 kN
Weight: 1,260 lb / 573 kg
Hydraulic Release Pressure: 1,500 psi / 10,335 kPa
Hydraulic Hold-Off Pressure: 1,400 psi / 9,646 kPa
Max Actuator Volume: 40 in³ / 656 cm³
Pad Area (two pads): 225 in² / 1,450 cm²
Max Caliper Port Pressure: 2,000 psi / 13,800 kPa
Full dimensional drawings available on request.
Applied Force: 150,000 lb / 668 kN
Weight: 2,360 lb / 1,073 kg
Hydraulic Release Pressure: 1,300 psi / 8,957 kPa
Hydraulic Hold-Off Pressure: 1,175 psi / 8,096 kPa
Max Actuator Volume: 100 in³ / 1,640 cm³
Pad Area (two pads): 360 in² / 2,320 cm²
Max Caliper Port Pressure: 2,000 psi / 13,800 kPa
Full dimensional drawings available on request.
Applied Force: 250,000 lb / 1,112 kN
Weight: 3,480 lb / 1,627 kg
Hydraulic Release Pressure: 950 psi / 6,546 kPa
Hydraulic Hold-Off Pressure: 860 psi / 5,925 kPa
Max Actuator Volume: 179 in³ / 2,936 cm³
Pad Area (two pads): 530 in² / 3,420 cm²
Max Caliper Port Pressure: 2,000 psi / 13,800 kPa
Full dimensional drawings available on request.
Applied Force: 375,000 lb / 1,668 kN
Weight: 5,570 lb / 2,529 kg
Hydraulic Release Pressure: 1,275 psi / 8,785 kPa
Hydraulic Hold-Off Pressure: 1,150 psi / 7,924 kPa
Max Actuator Volume: 160 in³ / 2,621 cm³
Pad Area (two pads): 570 in² / 3,670 cm²
Max Caliper Port Pressure: 2,000 psi / 13,800 kPa
Full dimensional drawings available on request.
Applied Force: 550,000 lb / 2,446 kN
Weight: 5,730 lb / 2,601 kg
Hydraulic Release Pressure: 1,350 psi / 9,302 kPa
Hydraulic Hold-Off Pressure: 1,275 psi / 8,785 kPa
Max Actuator Volume: 160 in³ / 2,621 cm³
Pad Area (two pads): 570 in² / 3,670 cm²
Max Caliper Port Pressure: 2,000 psi / 13,800 kPa
Full dimensional drawings available on request.
Applied Force: 800,000 lb / 3,562 kN
Weight: 8,520 lb / 3,868 kg
Hydraulic Release Pressure: 1,500 psi / 10,335 kPa
Hydraulic Hold-Off Pressure: 1,440 psi / 9,922 kPa
Max Actuator Volume: 254 in³ / 4,162 cm³
Pad Area (two pads): 720 in² / 4,645 cm²
Max Caliper Port Pressure: 2,000 psi / 13,800 kPa
Full dimensional drawings available on request.
